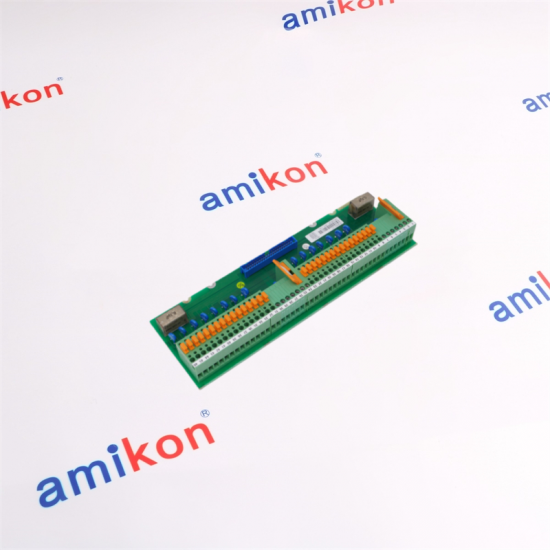

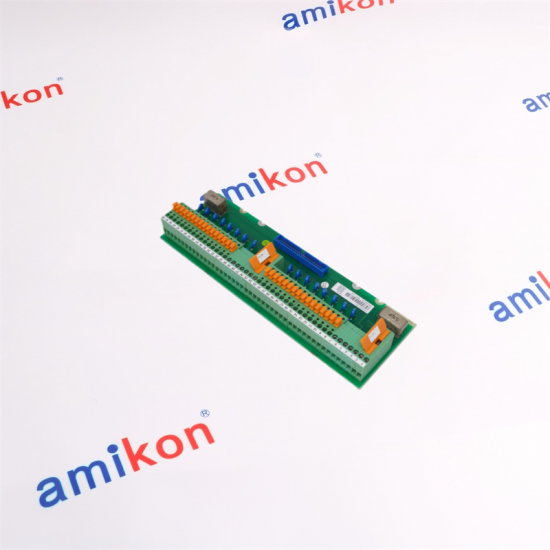

ABB DSTD180 57160001-HE Connection Unit

ABB DSTD180 57160001-HE Connection Unit

ABB · CONTROL SYSTEM COMPONENTS
DSTD180
57160001-HE
RELAY MATRIX UNIT
MODULE DETAILS
01 / UNIT TYPE
Relay Matrix
02 / PRODUCT ID
57160001-HE
03 / NET WEIGHT
550 g
ABB RELAY MATRIX UNIT
Industrial control system component · DSTD 180
CONTACT POINT
Miya Zheng
Sales Manager
✉  sales@amikon.cn ☎  86-18020776792
✦ International Delivery on the Day ◈ Quick Response Support ◇ Intercontinental Cooperation Network


RELAY MATRIX CONNECTION

DSTD180

57160001-HE

A relay matrix connection unit in the ABB Advant OCS / S100 I/O environment. Correct replacement depends on the complete part marking, terminal arrangement, relay population and connected field wiring.

TERMINATION AUDIT

DSTD180 connection-unit profile

IDENTITY DSTD180 PART NUMBER 57160001-HE
SYSTEM Advant OCS / S100 I/O DUTY Relay matrix connection unit
CABINET ROLE Termination and relay-matrix path between the connected I/O hardware and field circuits
MATCHING Compare terminal numbering, mating cables, relay population, mounting points and field-wire destinations
CONDITION Inspect terminals, connector pins, relays, solder joints, wiring bridges and heat discoloration
ELECTRICAL CHECK Use the original cabinet drawing and connected-module ratings; do not infer channel duty from the DSTD180 name

Field path before energizing

01

Connected S100 I/O hardware

>
02

Mating cable and connector keying

>
03

DSTD180 relay matrix

>
04

Verified field terminals

Connection units are function-specific

DSTD180 57160001-HE Relay matrix duty. Use only where both markings and the cabinet termination path agree.
DSTD110A 57160001-TZ Digital-output connection unit: 32 channels, maximum 60 V. Not a DSTD180 substitute.
DSTD150A 57160001-UH Digital-input connection unit: 32 channels, maximum 60 V. Use with its matching input board.
DSTD185 57160001-HK Separate 48-channel variant. Select only after terminal count, wiring and connected hardware are confirmed.
GLOBAL AUTOMATION SUPPORT

Expert reach for difficult industrial parts



Professional, broader and faster

Multilingual support and experienced specialists help resolve scarce-part and legacy-system requirements.

Prompt quotation, tracked orders and cross-continental delivery coordination reduce downtime.


Q

DSTD180 procurement checks

Q1 What must match before buying ABB DSTD180 57160001-HE?
Both markings, terminal layout, mating connectors, relay population, mounting points and connected I/O hardware.
Q2 Can ABB DSTD180 57160001-HE replace DSTD110A or DSTD150A?
No. Those units have defined output and input duties with different terminal functions.
Q3 Which field checks reduce risk with ABB DSTD180 57160001-HE?
Photograph terminals, mark every conductor and verify continuity against the cabinet wiring drawing.
Q4 Why should channel duty not be guessed for ABB DSTD180 57160001-HE?
The electrical duty depends on the cabinet and connected I/O arrangement; use original ratings and drawings.
Q5 What defects matter most on ABB DSTD180 57160001-HE?
Overheated terminals, damaged relays, oxidized pins, cracked solder joints and altered wiring bridges.
